About the Aviation Safety Monitor
The Aviation Safety Monitor is a service provided by Robust Analytics to deliver timely information on terminal area safety in the National Airspace System (NAS). The safety monitoring and prediction technologies were developed by Robust Analytics over the past several years. Partial funding was provided by the NASA Small Business Innovation Research Program and the NASA System Wide Safety Project.
The Aviation Safety Monitor provides quantitative estimates of safety margins at 26 airports in 17 metropolitan regions in the United States. This information complements data on several safety-related events that are published elsewhere, with the FAA’s Runway Incursion Statistics website a good example. However, the available safety information can be misleading if it only reports the frequency of violations with no insight into how safety buffers may vary minute-to-minute and day-to-day. The Aviation Safety Monitor aims to provide this insight every week.
How Do We Measure Safety Margins?
The Aviation Safety Monitor summarizes output from Risk Tracker, the Robust Analytics in-time terminal airspace hazard and safety metrics monitoring system.
Aviation Safety Monitor Weekly Report for the Week Ending September 14, 2024
Safety margins decreased significantly last week. Total encroachments durations for the week ending September 14 increased 31.9 percent and the number of encroachment events rose 30.3 percent. Despite generally good weather over most of the NAS, Conformance Category PE and C buffer encroachment durations increased 84 percent. The more severe Category A and B conformance deviations jumped 25 percent from the previous week. The level of encroachment durations and events last week were the highest since the week ending March 9. Category A and B durations are at the highest level since we started reporting on February 18, 2024.
Welcome back to the Weekly Aviation Safety Report. Every Monday Robust Analytics reports on safety margins at 26 United States airports. With this Aviation Safety Monitor Weekly Report, Robust Analytics offers the aviation community timely assessments of changing safety margins and safety-related events. Dates and times are tracked in UTC and the week ends at midnight every Saturday. This week’s report includes data through 2400 UTC on September 14, 2024.
For New Readers: Please read our article “Did Safety Degrade in the National Airspace System in the Winter of 2022-2023?” that applies our methods and data to examine whether safety margins decreased during the events of winter 2022-2023.
The Aviation Safety Monitor measures safety margins by estimating the frequency, duration, and severity of buffer encroachments. Our paper “How Do We Measure Safety Margins?” provides a detailed description of the methods and data. That article can be found here https://www.robust-analytics.com/measure on the Robust Analytics website.
Weekly Safety Margin Update. Safety margins decreased significantly over the past week. Total encroachments durations for the week increased 31.9 percent and the number of encroachment events rose 30.3 percent. Despite generally good weather over most of the NAS, Conformance Category PE and C buffer encroachment durations increased 84 percent. The weekly encroachment duration per event changed little, increasing only 0.26 seconds. Figure 1 summarizes the weekly data since the Aviation Safety Monitor began reporting on February 24, 2024.

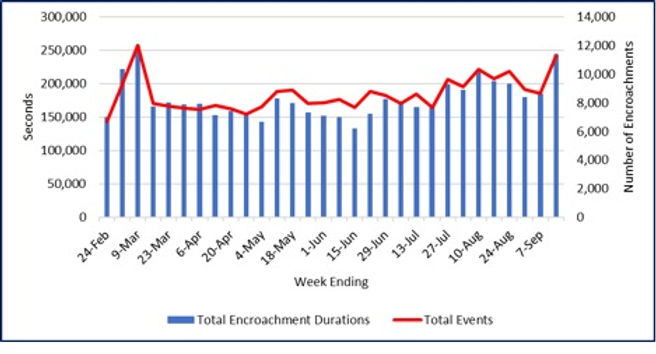

Figure 1. Weekly Trends in Encroachment Events and Durations
Let’s now take a closer look at safety margins for the seven days ending September 14. Figure 2 displays estimates of encroachment durations per aircraft for each hour over the previous seven days. This offers a detailed look at how safety margins vary over the operating day. Figure 2 also indicates the historical range of the data by showing the 25th, 75th, and 90th percentile values of the duration per aircraft metric. The percentiles were estimated using data from May 2022 through February 2024.
Figure 2 displays the typical time of day pattern that we observe in the data, as encroachment events are highly correlated with traffic density. Even after aggregating the data over 17 metroplexes operating in three time zones the time of day pattern remains prominent. The past seven days worsened as the week progressed, particularly during the last three days. There were 13 duration spikes over the 90th percentile, with a huge spike on September 14 that is one of the highest ever recorded.
Figure 2. Hourly Encroachment Duration Per Aircraft for the Week Ending September 14, 2024
Figure 3 reports the 7-day moving average duration per aircraft for the four weeks from August 18 through September 14, 2024. The chart shows that safety margins over the past month were generally better than the historical average as indicated by the percentile scores, until this past week. The time series reflects a seasonal pattern in which safety margins are highest during the spring and summer months and slowly degrade starting in late summer.
Figure 3. Moving Average Hourly Encroachment Duration Per Aircraft, August 18 through September 14, 2024
Figure 4 displays the 7-day moving average encroachment duration per aircraft for the past three months. The chart shows a steady deterioration since the end of June. The first two weeks of September averaged daily encroachment durations 7.9 percent higher than the August average. Daily encroachment durations were 10.5 percent higher in August than in July, and the July average was 11.5 percent higher than the June daily average.
Figure 4. 24-Hour Moving Average Encroachment Duration Per Aircraft for the Three Months Ending September 14, 2024
We wrap-up this week’s report with updates to charts presented in the previous weekly reports. Figure 5 shows the daily encroachment event rates and durations per aircraft across the 26 airports in the 17 metropolitan areas that we monitor. The blue bars report estimates of total daily encroachment durations divided by the number of aircraft in the terminal airspace (approximately 50 miles of the airport center) for all 17 terminal airspaces. The red line reports the daily number of encroachment events per 100 aircraft. We detect big jumps in both metrics the weeks ending July 27, August 11, and September 14, with each peak higher than the previous one.
Figure 5. Encroachment Duration Per Aircraft and Event Rates for February 18, 2024 through September 14, 2024
As data are added to the chart each week, readers can begin to detect some mild day-of-week variation and, more importantly, periods of a few days and even a week or longer in which encroachment durations increase significantly. In the coming weeks, we will examine these fluctuations in more detail.
How severe are these encroachments? The FAA defines three separation conformance categories based on how far they are from the separation index. (See the description “How Do We Measure Safety Margins?” for details on the conformance categories and how we measure them.) In that classification system, Conformance Categories A and B are the most severe. Under our definition of a buffer encroachment, Category A and B encroachments are counted under all meteorological conditions.
Figure 6 displays information on the most severe separation conformance categories. The weekly durations and event counts for the sum of Category A and B encroachments are shown in Figure 6. After moderating for two weeks, the encroachment duration metric jumped up last week and is now at the highest level since we started reporting on February 18. Average daily encroachment durations for the first two weeks in September are 5.6 percent higher than the August average, which was 10 percent higher than in July.
Both the number of buffer encroachments and their durations for Category A and B are at the highest levels since we began reporting in the Aviation Safety Monitor. If readers are interested, we can conduct a deep dive into the conformance category encroachments in a future weekly report. Let us know if that information will be useful.
